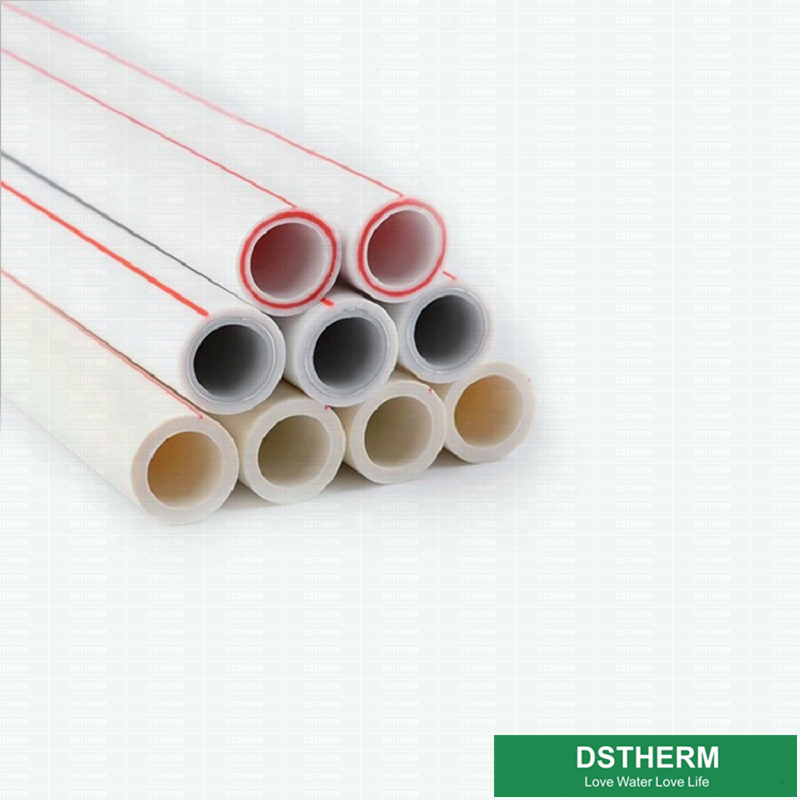

Polypropylene White Plastic Water Pipe , Glass Fiber Insulation Ppr Plastic Pipe

Brand Name : DSTHERM

Model Number : 20-160mm

Certification : ISO9001

Place of Origin : Zhejiang China

MOQ : Negotiation

Price : Negotiation

Supply Ability : 20days /20 feet container , 35days/40 HQ

Delivery Time : 20 days

Packaging Details : 4m/PCS polybag

Product Name : PP-R glass fiber insulation polypropylene composite pipe

Color : Color customization

Size : 20-160mm

Lenght : 4m or as required

Application : Cold or hot water supply

Feature : High Pressure

Work Pressure : PN 25

Connection : Hot melting

Sample : Available

Contact Now

Polypropylene White Plastic Water Pipe , Glass Fiber Insulation Ppr Plastic Pipe

PP-R glass fiber insulation polypropylene composite pipe DIN8077/8078 Color customization size 20-160​

PP-R Fiber Composite pipe

OEM Available

Material: PPR HYOSUNG R200P from Korea,

Standard: ISO 15874: DIN8077-8078

Production temperature: -40 - +95°C

Pressure Rating: PN10,PN12.5,PN16 ,PN20
Connection:socket fusion joint,electro fusion joint or transition joint

PN 1.25MPa PN 1.6MPa PN 2.0MPa PN 2.5MPa

Outer Diameter

dn(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)

Wall Thickness

en(mm)

20 2.0 2.3 2.8 3.4
25 2.3 2.8 3.5 4.2
32 3.0 3.6 4.4 5.4
40 3.7 4.5 5.5 6.7
50 4.6 5.6 6.9 8.4
63 5.8 7.1 8.7 10.5
75 6.9 8.4 10.3 12.5
90 8.2 10.1 12.3 15.0
110 10.0 12.3 15.1 18.3
160 14.6 17.9 21.7 26.6

Items Index
Pipe Material Pipe Article
Density G/cm³20 0.89-0.91
Heat Transmitting Index W/m.k(20) 0.23-0.24
Thread Expand Index Mm/m.k 0.14-0.16
Flip Thread Mode Mete W/m²(20) 800
Extend Intendity Mpa More than 20
Minitication in Portrait 135, 2h% Less than 2
Swing and Beat Impact Test 15J, 0, 2H (disrepair rate)% Less than 10

Advantages:

High temperature resistance: the maximum sustained working temperature is up to 70°Cdegrees, the maximum transient temperature is up to 95°C

Heat preservation: low thermal conductivity results in preserving heat

Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium

Lower installation costs: light weight and easy installation can reduce installation costs

Higher flow capacity: smooth interior walls result in low pressure loss and high volume

Feature
1. Sanitary & non - toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years

Advantages:

High temperature resistance: the maximum sustained working temperature is up to 70°Cdegrees, the maximum transient temperature is up to 95°C

Heat preservation: low thermal conductivity results in preserving heat

Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium

Lower installation costs: light weight and easy installation can reduce installation costs

Higher flow capacity: smooth interior walls result in low pressure loss and high volume
