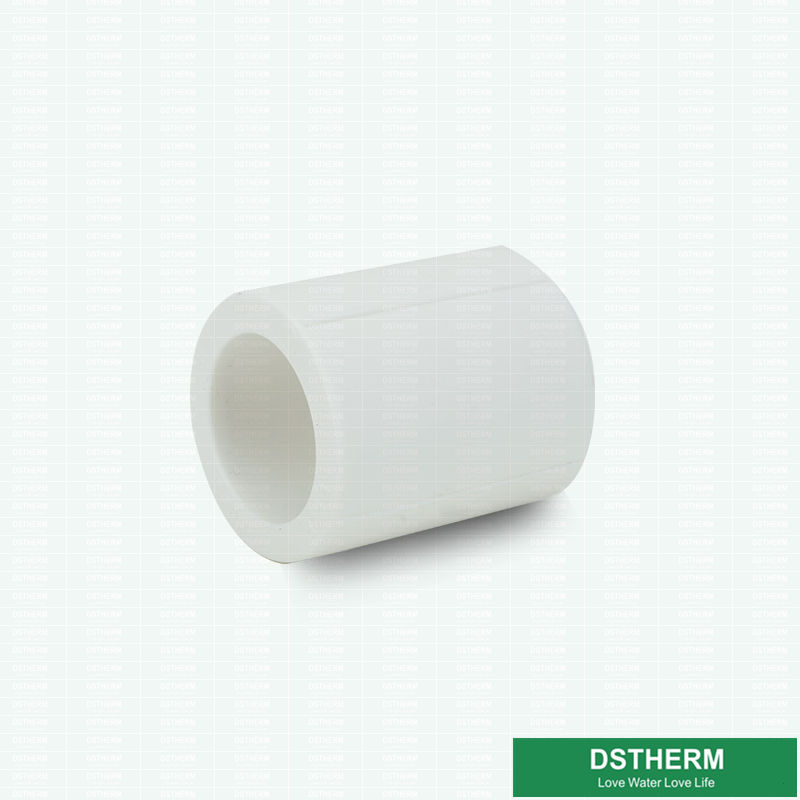

Round Head Code White PPR Plastic Water Pipe Fittings Coupler With Smooth Surface

Brand Name : DSTHERM

Model Number : 20-160mm

Certification : ISO9001

Place of Origin : Zhejiang China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 20days /20 feet container , 35days/40 HQ

Delivery Time : in stock (depend on quantity)

Packaging Details : Carton

Product Name : PPR Pipe Fittings Coupler

Material : Polypropylene

Color : White

Specification : 20-160mm

Standard : ISO15874 and DIN8007/8078

Shape : Equal

Head Code : Round

Thickness : Depend on Size

Shipping : By sea or by air

Contact Now

Round Head Code White PPR Plastic Water Pipe Fittings Coupler With Smooth Surface

DSTHERM White PPR Pipe Fittings Coupler Size 20-160mm Good Impact DIN8007/8078

Material: PPR HYOSUNG R200P from Korea , Borealis A140E
Technics: Injection
Place of Origin: Shanghai, China
Connection: Welding
Shape: Equal,
Name: PPR Coupling
Color: White
Surface: Smooth
Pressure Rating: 2.0MPa
Size:20mm-160mm
OEM Available
Material: PPR HYOSUNG R200P from Korea,
Standard: ISO 15874: 2003, DIN8077-8078
Production temperature: -40 - +95°C
Certification: ISO9001,

Descriptions of coupling

Name pp-r pipe fittings PPR Coupling PPR Socket
Color White
Connection socket fusion joint, electro fusion joint or transition joint
Material polypropylene
Pressure Rating 1.0Mpa,1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa
Service life 50 years
Size 20mm-160mm


Permissible Working Pressure And Longevity

Working pressure(bar) Temperature ℃ Working year(H/Y)
Cold water 0 to10 transient To 25 8760
Hot water 0 to10 transient To 60 8710
To 80 50


For Water Installations


Temperature
Service life Safety-factor=1.5
SDR 11 SDR 9 SDR7.4 SDR 6
Nominal Pressere
PN10 PN12.5 PN16 PN20
Permissible Working Pressure
20℃ 1 15.0 18.9 23.8 30.0
10 13.7 17.3 21.7 27.2
50 12.9 15.9 20.4 25.7
40℃ 1 10.8 13.6 17.1 21.2
10 9.2 12.4 16.0 20.2
50 9.2 11.5 14.5 18.8


50℃

1 9.2 10.8 14.5 18.3
10 8.2 10.5 13.1 16.5
50 7.7 9.8 12.2 15.4
60℃ 1 / / 12.2 15.4
10 / / 11.0 13.8
50 / / 10.1 12.7
75℃ 1 / / 9.9 12.3
10 / / 7.5 9.3
25 / / 6.1 7.5

SDR=Standard Dimension Ratio(diameter/wall thickness)
SDR=d/s(S=Pope series index from ISO 4065)


Feature
1. Sanitary & non-toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years

Application of ppr pipe and fittings


1. The civil-use and industrial-use construction inner cold/warm water and water-giving systems;

2. Public sites, (such as schools, hospitals), gyms(such as swimming pools, playground);

3. Drinking water systems and food industry management system'

4. Garden and warm rooms irrigating systems;

5. Traditional heat-giving/ heat-absorbing systems;

6. Central air-conditioner system;

7. Chemical flowing transferring pipe system.

Our advantages
1). 15 Years' Experience in production
2). accept OEM Order
3). ISO9001 approved
4). We use All New raw material in products
5). Sufficient products with complete specifications for your choice
